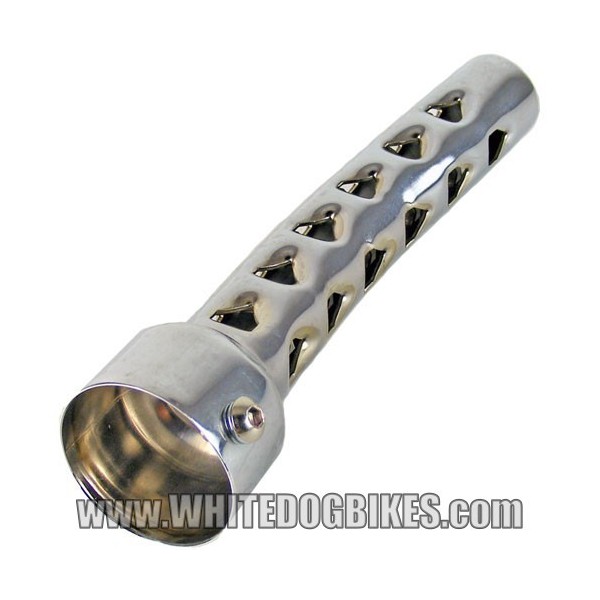

Easy to fit 47mm angled motorbike exhaust baffle designed to fit into the spout and barrel of conventional shaped race or aftermarket exhaust cans.

This motorcycle baffle greatly reduces the noise levels from motorbike exhausts, race cans or end cans if you have lost the baffle (or if the exhaust did not come with a baffle)!

The baffle simply bolts into the end of the exhaust end can to reduce the noise levels.

This baffle is ideally suited to inline 4 cylinder engine, conventional exhaust cans with an internal diameter of 47mm in the outlet spout (CBR, GSXR, Fireblade, Bandit, R1, R6, Fazer etc) but can be adapted to fit a wide range and style of exhausts.

47mm Angled motorbike exhaust baffle features:

• Simple and easy to fit
• Held in by a bolt so the baffle is easy to remove or install again (handy if your somewhere that does not have noise restrictions!)
• Can help get an un baffled motorbike exhaust through an MOT or quieten an exhaust down for a track day
• Can be used in round or oval bodied exhaust cans

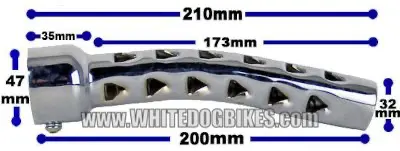

The pictures below give an idea of the baffle dimensions:
(please note - the measurements below are approx)



Fitting requires a small hole to be drilled in the exhaust can spout.

Although these baffles will fit many motorbike exhaust end cans, they are not suitable for some high level systems where the end spout is at a steep angle to the can body (e.g. the Honda VTR1000 SP1 and SP2, see image on the left below). They are more suited to straighter end cans (see image on the right below):
